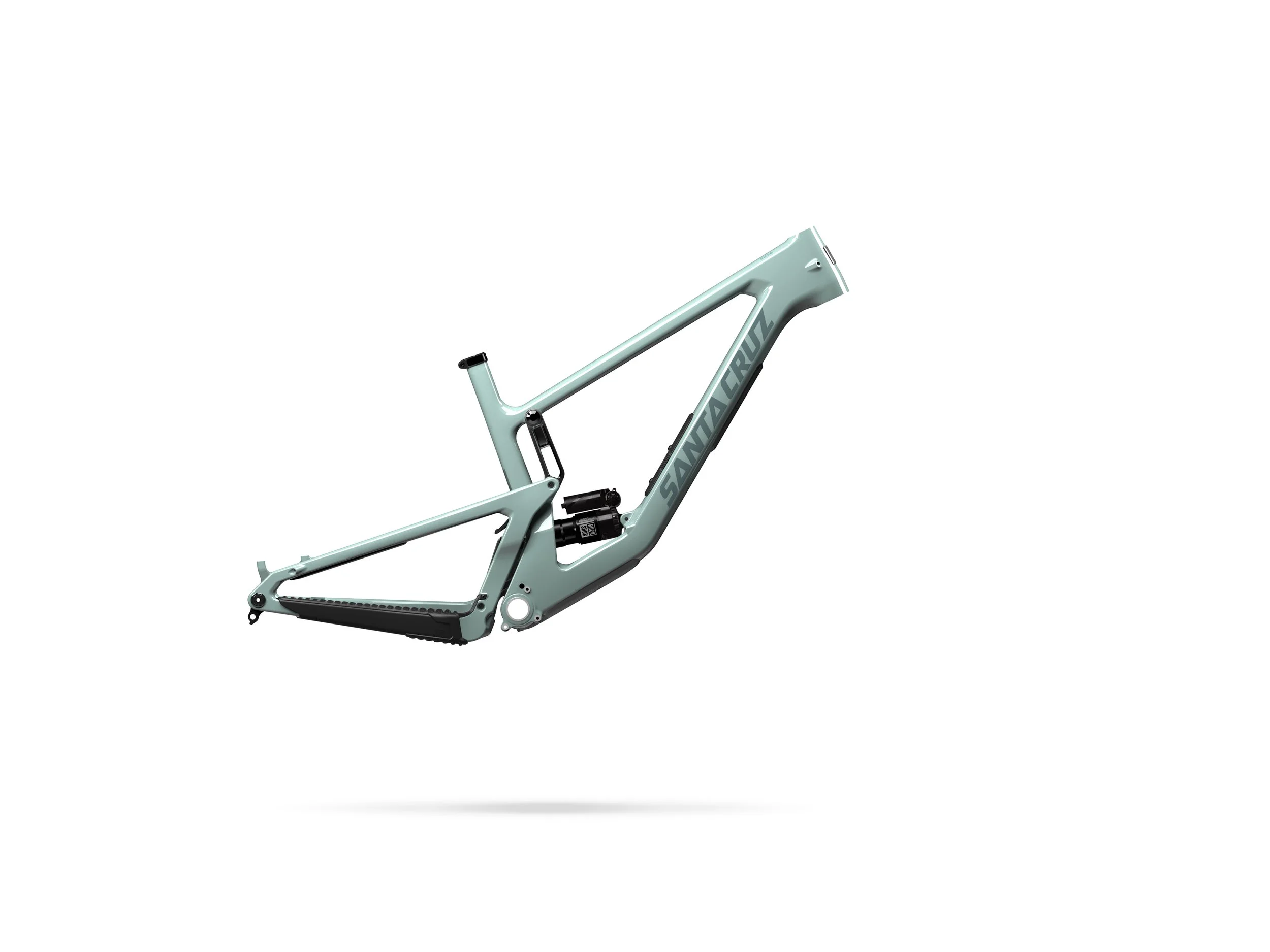

5010 MX CC FRAME
5010 MX CC FRAME
Turn obstacles into features
The 5010 is not just "the little bike" of our range. It makes even the most mundane trails feel like they're loaded with features to hop, skip and jump over. It's like having super-skills at your fingertips. The 5010 has always been more capable than many expected but with the traction-gaining 29-inch wheel up front and even more refined suspension the 5010 gives you a deft touch on the trails.
Available in: Carbon CC
Wheel size: MX
Front travel: 140
Rear travel: 130
5010 5 CC FRAME
For all the sizzle, glossy photos, size and geo charts go to the source at Santa Cruz Bicycles.
Rear Shock | RockShox Super Deluxe Ultimate, 210x50
5010 5 Frame Specifications
Suspension System | VPP
Headset/Headtube | Integrated (IS41/52)
Seat Post | 31.6mm
Seat Clamp | 36.4mm
Eye to Eye length | 210mm
Stroke | 50mm
Fork Compatibility | 140mm
Fork Offset | 44mm
Brake Mount | PM 180mm
BB Shell | 73mm Threaded
Max Tire Size | 2.5"
Max Chainring Size | 34t
Water Bottle Mounts | 1
Shock Mounting Bushing Front | 30x8
Shock Mounting Bushing Rear | 30x8 (bearing compatible)
Please note: Parts Spec information is subject to change.
